Honing tube|polishing tube professional processing and sales, support customized service, to meet all your needs!

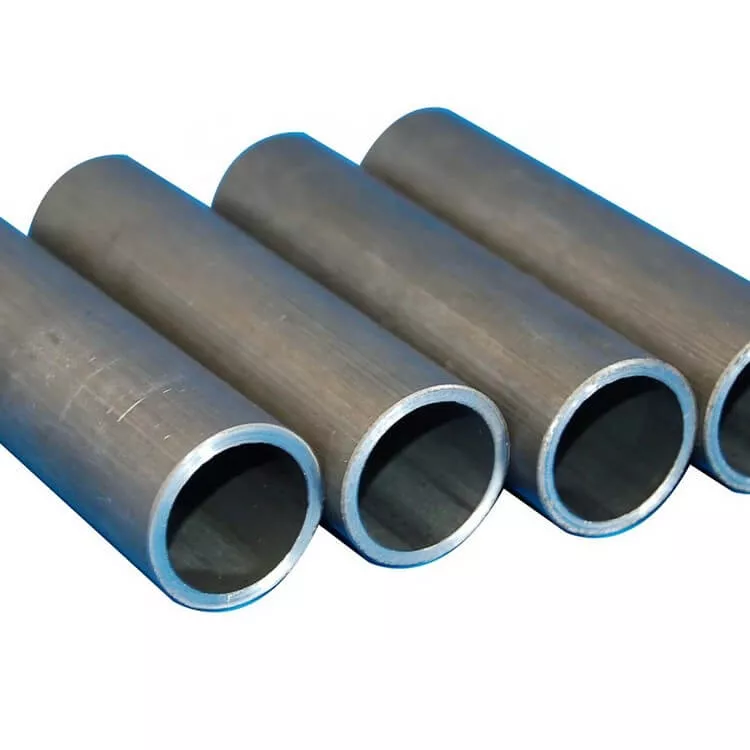

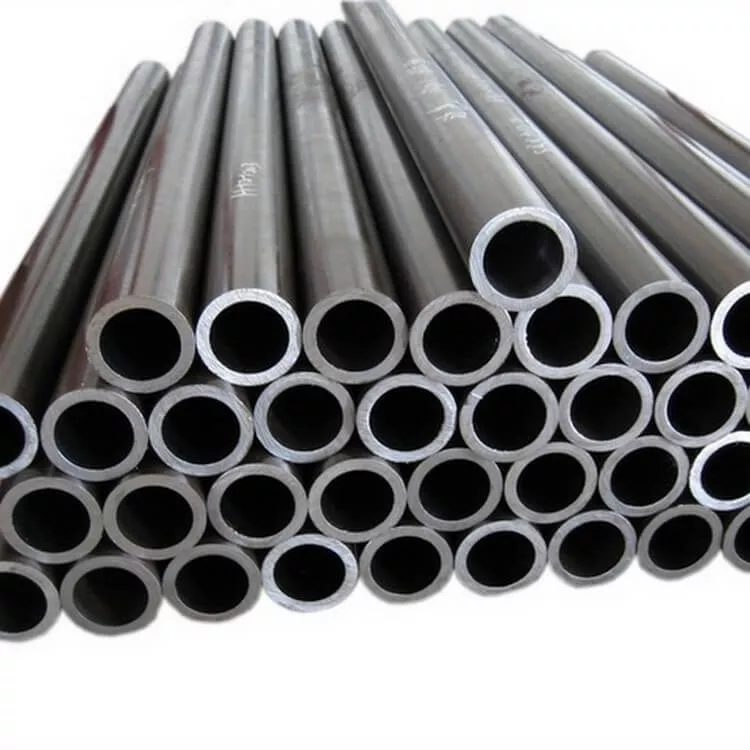

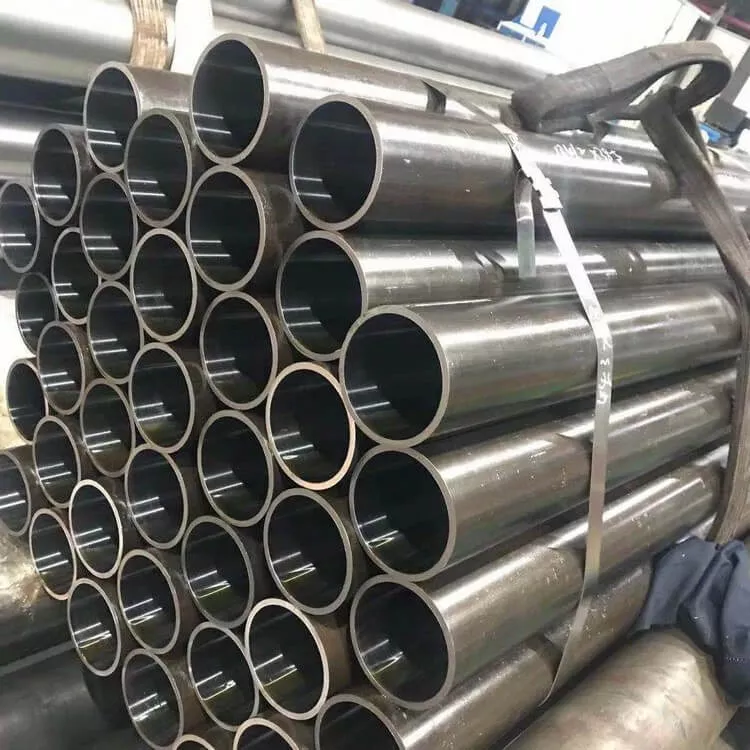

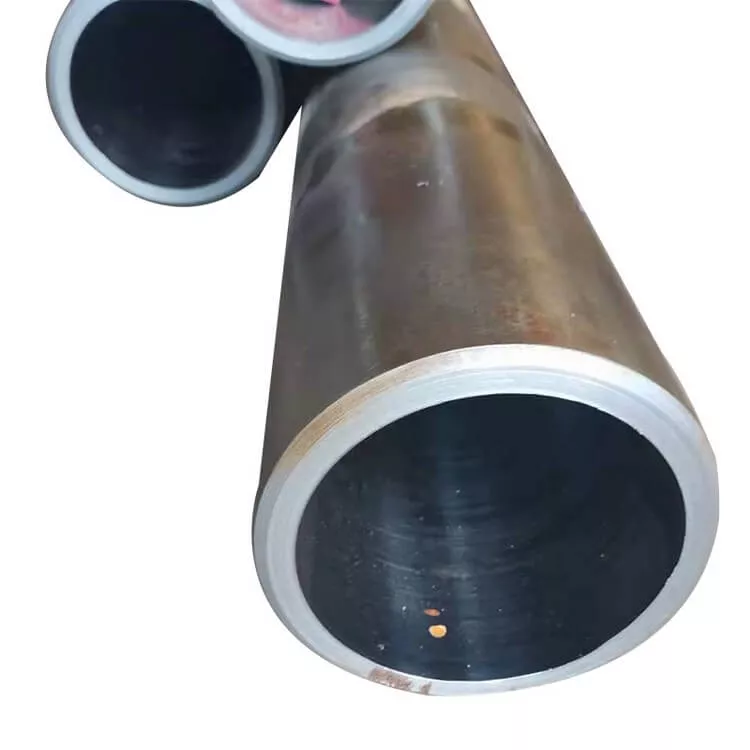

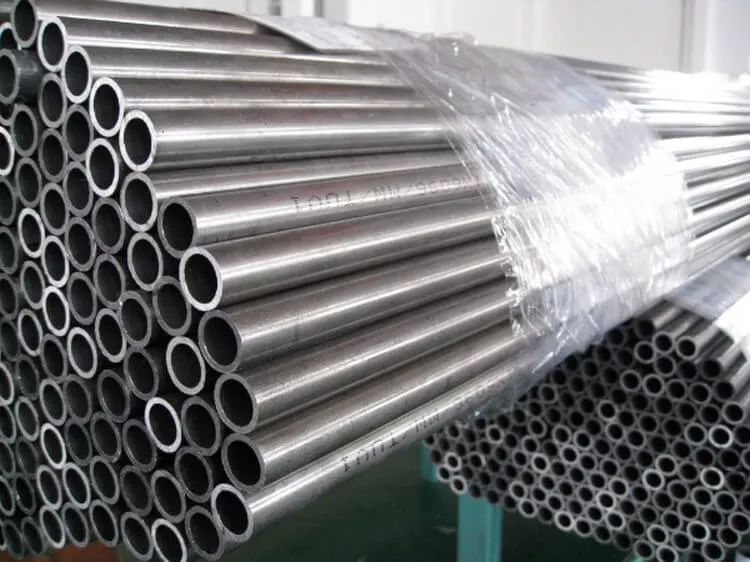

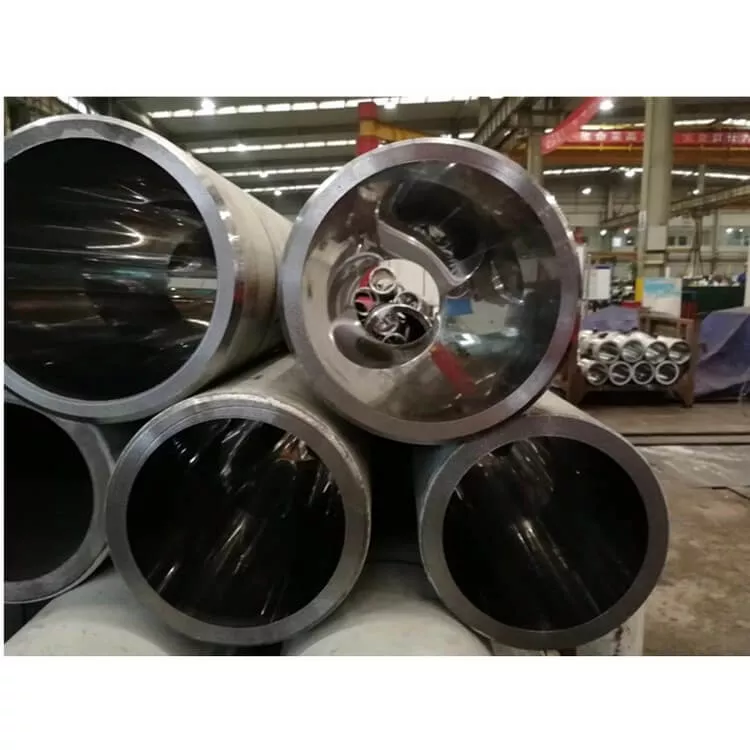

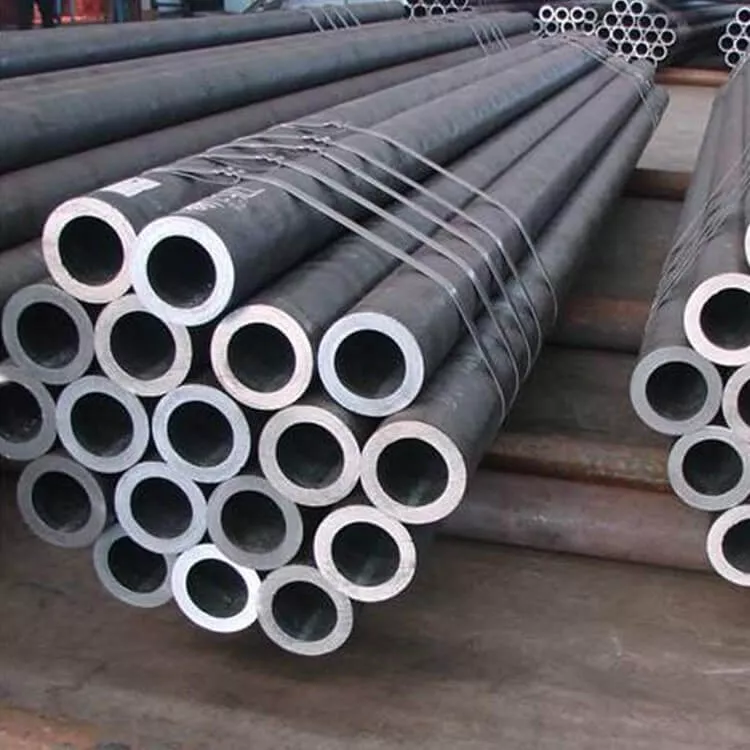

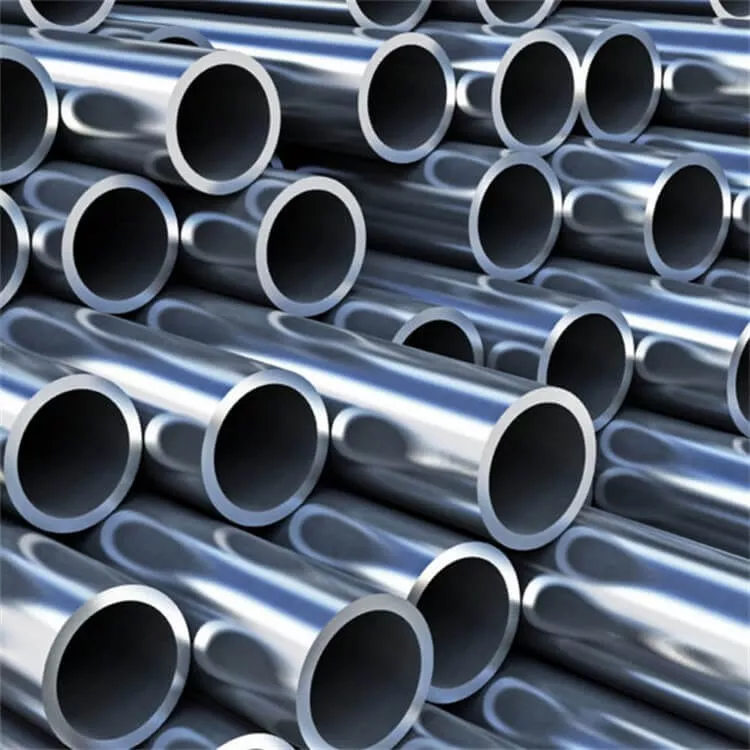

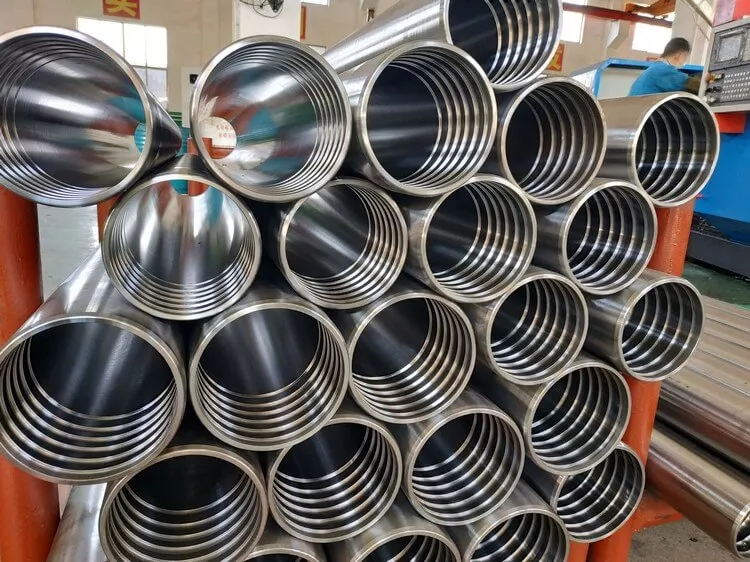

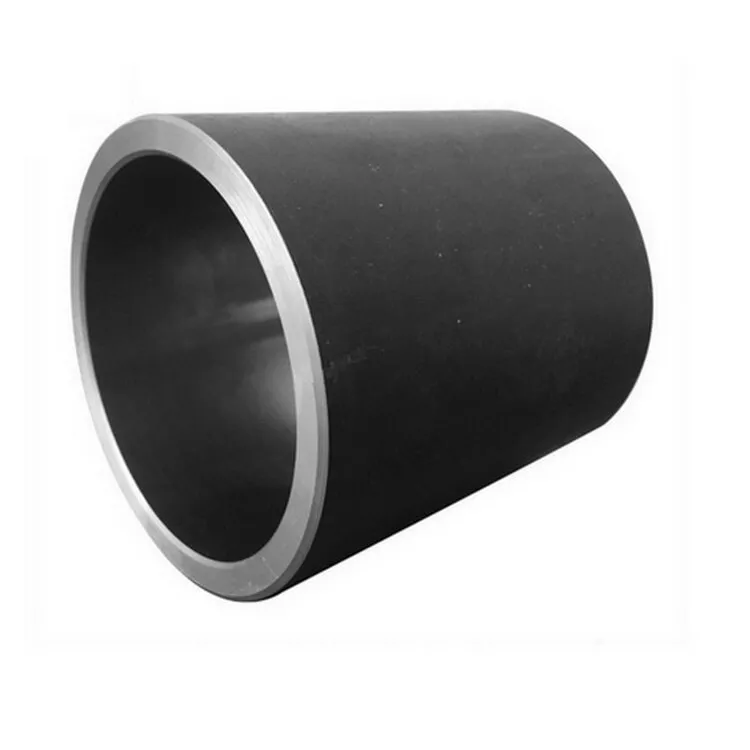

Honed steel pipe is a high-precision steel pipe material after cold drawing or hot rolling. Because the inner and outer walls of precision steel pipes have no oxide layer, no leakage under high pressure, high precision, high finish, no deformation during cold bending, flaring, flattening and no cracks, etc., they are mainly used to produce products of pneumatic or hydraulic components, such as cylinders or oil cylinders, which can be seamless pipes. The chemical composition of honing steel pipe includes carbon C, silicon Si, manganese Mn, sulfur S, phosphorus P and chromium Cr.
Speci -cation | Grade | Chemical Composition [%] | Mechanical Properties | |||||||||||||||||||
C | Mn | P | S | Si | Cr | Mo | Cu | Ni | V | Yield Strength | Tensile Strength | % Elongation (G.L. 50 mm WT 8 mm) e (min.) | ||||||||||
Min. | Min. | |||||||||||||||||||||
Min | Max. | Min | Max. | Max. | Max. | Min. | Max | Min. | Max | Min. | Max | Max | Max | Max | PSI | MPa | PSI | MPa | ||||
HYDROCARBON PROCESS INDUSTRY/STRUCTURAL/PRESSURE VESSEL TUBES | ||||||||||||||||||||||
ASTM | A | - | 0.25 | - | 0.95 | 0.05 | 0.045 | - | - | - | 0.4 | - | 0.15 | 0.40 for S | 0.4 | 0.08 | 30,000 | 205 | 48,000 | 330 | e=625000 A02/U09 | |
A-53 | B | - | 0.3 | - | 1.2 | 0.05 | 0.045 | - | - | - | 0.4 | - | 0.15 | 0.40 for S | 0.4 | 0.08 | 35,000 | 240 | 60,000 | 415 | ||
ASTM | A | - | 0.25 | 0.27 | 0.93 | 0.035 | 0.035 | 0.1 | - | - | 0.4 | - | 0.15 | 0.4 | 0.4 | 0.08 | 30,000 | 205 | 48,000 | 330 | 35L / 25T | |
A-106 | B | - | 0.3 | 0.29 | 1.06 | 0.035 | 0.035 | 0.1 | - | - | 0.4 | - | 0.15 | 0.4 | - | 0.08 | 35,000 | 240 | 60,000 | 415 | 30L / 16.5T | |
c | - | 0.35 | 0.29 | 1.06 | 0.035 | 0.035 | 0.1 | - | - | 0.4 | - | 0.15 | 0.4 | 0.08 | 40,000 | 275 | 70,000 | 485 | 30L / 16.5T | |||
ASTM | 1 | - | 0.3 | 0.4 | 1.06 | 0.025 | 0.025 | - | - | - | - | - | - | - | - | - | 30,000 | 205 | 55,000 | 380 | 35 | |
A333 & A 334 | 6 | - | 0.3 | 0.29 | 1.06 | 0.025 | 0.025 | 0.1 | - | - | - | - | - | - | - | - | 35,000 | 240 | 60,000 | 415 | 30 | |
SEAMLESS COLD DRAWN PRECISION STEEL TUBES FOR MECHANICAL APPLICATIONS/HYDRAULIC/PNEUMATIC POWER SYSTEMS | ||||||||||||||||||||||
EN 10305-1/ | E 235 | 0.17 | 1.2 | 0.025 | 0.025 | 0.35 | 0.02 | 235 | 340 | 25 | ||||||||||||
EN10305-4 | E 355 | 0.22 | 1.6 | 0.025 | 0.025 | 0.55 | 0.02 | 355 | 490 | 22 | ||||||||||||
EN 10216-1 | P195 TR1 | 0.13 | 0.7 | 0.025 | 0.02 | 0.35 | 0.3 | 0.08 | 0.3 | 0.3 | 195 | 320 | 27 | |||||||||
P235 TR1 | 0.16 | 1.2 | 0.025 | 0.02 | 0.35 | 0.3 | 0.08 | 0.3 | 0.3 | 235 | 360 | 25 | ||||||||||
EN 10216-2 | P235 GH | 0.16 | 1.2 | 0.025 | 0.02 | 0.35 | 0.3 | 0.08 | 0.3 | 0.3 | 0.02 | |||||||||||
DIN 2391 | St - 45 | - | 0.17 | 0.4 | - | 0.025 | 0.025 | - | 0.35 | - | - | - | - | - | - | - | NBK : 215 / GBK : - | NBK : 340 / GBK : 315 | NBK : 470 | |||
St - 45 | - | 0.21 | 0.4 | - | 0.025 | 0.025 | - | 0.35 | - | - | - | - | - | - | - | NBK : 255 / GBK : - | NBK : 440 / GBK : 390 | NBK : 570 | ||||
St - 52 | - | 0.22 | - | 1.6 | 0.025 | 0.025 | - | 0.55 | - | - | - | - | - | - | - | NBK : 355 / GBK : - | NBK : 490 / GBK : 490 | NBK : 630 | ||||
ASTM | SAE 1010 | 0.08 | 0.13 0.20 | 0.3 | 0.6 | 0.04 | 0.05 | - | - | - | - | - | - | - | - | - | As per Customer requirements | |||||
A-519 | SAE 1018 | 0.15 | 0.28 | 0.6 | 0.9 | 0.04 | 0.05 | - | - | - | - | - | - | - | - | - | ||||||
SAE 1026 | 0.22 | 0.38 | 0.6 | 0.9 | 0.04 | 0.05 | - | - | - | - | - | - | - | - | - | |||||||
SAE 1035 | 0.32 | 0.44 | 0.6 | 0.9 | 0.04 | 0.05 | - | - | - | - | - | - | - | - | - | |||||||
SAE 1040 | 0.37 | 0.21 | 0.6 | 0.9 | 0.04 | 0.05 | - | - | - | - | - | - | - | - | - | |||||||
SAE 1518 | 0.15 | 0.44 | 1.1 | 1.4 | 0.04 | 0.05 | - | - | - | - | - | - | - | - | - | |||||||
SAE 1541 | 0.36 | 0.33 | 1.35 | 1.65 | 0.04 | 0.05 | - | - | - | - | - | - | - | - | - | |||||||
SAE 4130 | 0.28 | 0.4 | 0.6 | 0.04 | 0.04 | 0.15 | 0.35 | 0.8 | 1.1 | 0.15 | 0.25 | - | - | - | ||||||||
BOILER/HEAT EXCHANGER/SUPERHEATER & CONDENSER TUBES | ||||||||||||||||||||||
ASTM A179 | - | 0.06 | 0.18 | 0.27 | 0.63 | 0.035 | 0.035 | - | - | - | - | - | - | - | - | - | 26,000 | 180 | 47,000 | 325 | 35 | |
ASTM A192 | 0.06 | 0.18 | 0.27 | 0.63 | 0.035 | 0.035 | - | 0.25 | - | - | - | - | - | - | - | 26,000 | 180 | 47,000 | 325 | 35 | ||
ASTM | A-1 | - | 0.27 | - | 0.93 | 0.035 | 0.035 | 0.1 | - | - | - | - | - | - | - | - | 37,000 | 255 | 60,000 | 415 | 30 | |
A 210 | C | - | 0.35 | 0.29 | 1.06 | 0.035 | 0.035 | 0.1 | - | - | - | - | - | - | - | - | 40,000 | 275 | 70,000 | 485 | 30 | |
ASTM | T-11 | 0.05 | 0.15 | 0.3 | 0.6 | 0.025 | 0.025 | 0.5 | 1 | 1 | 1.5 | 0.44 | 0.65 | - | - | - | 30,000 | 205 | 60,000 | 415 | 30 | |
A 213 | T-12 | 0.05 | 0.15 | 0.3 | 0.61 | 0.025 | 0.025 | - | 0.5 | 0.8 | 1.25 | 0.44 | 0.65 | - | - | - | 32,000 | 220 | 60,000 | 415 | 30 | |
T-22 | 0.05 | 0.15 | 0.3 | 0.6 | 0.025 | 0.025 | - | 0.5 | 1.9 | 2.6 | 0.87 | 1.13 | - | - | - | 30,000 | 205 | 60,000 | 415 | 30 | ||
ASTM | P-11 | 0.05 | 0.15 | 0.3 | 0.6 | 0.025 | 0.025 | 0.5 | 1 | 1 | 1.5 | 0.44 | 0.65 | - | - | - | 30,000 | 205 | 60,000 | 415 | 30 | |
A335 | P-12 | 0.05 | 0.15 | 0.3 | 0.61 | 0.025 | 0.025 | - | 0.5 | 0.8 | 1.25 | 0.44 | 0.65 | - | - | - | 32,000 | 220 | 60,000 | 415 | 30 | |
P-22 | 0.05 | 0.15 | 0.3 | 0.6 | 0.025 | 0.025 | - | 0.5 | 1.9 | 2.6 | 0.87 | 1.13 | - | - | - | 30,000 | 205 | 60,000 | 415 | 30 | ||
BS 3059 Pt I | 320 | - | 0.16 | 0.3 | 0.7 | 0.04 | 0.04 | 0.1 | 0.35 | - | - | - | - | - | - | - | 28,000 | 195 | 46,000 | 320 | 69,500 | |
BS 3059 Pt II | 622-490 | 0.08 | 0.15 | 0.4 | 0.7 | 0.03 | 0.03 | - | 0.5 | 2 | 2.5 | 0.9 | 1.2 | - | - | - | 40,000 | 275 | 71,000 | 490 | 93,000 | |
DIN 1629 | St- 37.0 | - | 0.17 | - | - | 0.04 | 0.04 | - | - | - | - | - | - | - | - | - | WT 16mm = 235 / WT>16mm = 225 | 350 | - | |||
St - 52 | - | 0.22 | - | - | 0.04 | 0.035 | - | - | - | - | - | - | - | - | - | WT 16mm = 355 / WT>16mm = 345 | - | Long 21 / Trans 19 | ||||
DIN 17175 | St - 35.8 | - | 0.17 | 0.4 | 0.8 | 0.04 | 0.04 | 0.1 | 0.35 | - | - | - | - | - | - | - | WT 16mm = 235 / WT>16mm = 225 | 360 | 480 | |||
St - 45.8 | - | 0.21 | 0.4 | 1.2 | 0.04 | 0.04 | 0.1 | 0.35 | - | - | - | - | - | - | - | WT 16mm = 255 / WT>16mm = 245 | 410 | 530 | ||||
RAILWAYS | ||||||||||||||||||||||
IS:1239 Pt I | - | - | - | - | - | 0.05 | 0.05 | - | - | - | - | - | - | - | - | - | - | - | 46,500 | 320 | - | |
IS:1161 | YST-210 | - | 0.12 | - | 0.6 | 0.04 | 0.04 | - | - | - | - | - | - | - | - | - | 30,500 | 210 | 48,000 | 330 | - | |
YST-240 | - | 0.16 | - | 1.2 | 0.04 | 0.04 | - | - | - | - | - | - | - | - | - | 35,000 | 240 | 59,500 | 410 | - | ||
YST-310 | - | 0.25 | - | 1.3 | 0.04 | 0.04 | - | - | - | - | - | - | - | - | - | 45,000 | 310 | 64,500 | 445 | - |
Product | Honing steel pipe | |
Standard | China | GB/T8162/T8163 GB5310/6579/9948/YB235-70 |
U.S.A. | ASTMA53/A106/A178/A179/A192/A210/A213/A333/A335/A283/A135/A214/31 5/A500/A501/A519/A161/A334;API5L/5CT | |
Japan | JISG3452/G3454/G3456/G3457/G3458/G3460/3461/3462/3464 | |
German | DIN 1626/17175/1629-4/2448/2391/17200 SEW680 | |
Russia | GOST8732/8731/3183 | |
| China | 10#,20#,35#,45#、20cr、40cr,16Mn(Q345A、B、C、D),20G,15M0G, 15CrMo,30CrM0,42Crmo,27SiMn, 20CrMo |
U.S.A. | Gr.B/Gr.A/A179/A192/A-1/T11/T12/T22/P1/FP1/T5/4140/4130,J55、L80、 N80、P110。 | |
Japan | STPG38,STB30,STS38,STB33,STB42,STS49,STBA23,STPA25,STPA23 | |
German | ST33,ST37,ST35,ST35.8,ST45,ST52,15M03,13CrMo44,1.0309,1.0305,1.0405 | |
Russia | 10,20,35,45,20X | |
Out Diameter | 10-1000mm OR customization | |
Wall Thickness | 0.25-100mm OR customization | |
Length | 1-12m OR customization | |
Protection | Plastic caps | |
Pipe ends | plain, beveled, threaded, socket with holes, with PVC clap/ coupling/ clamp or as customers' requirement | |
Technique | Hot Rolled/Cold Rolled/Cold Drawn | |
Packing terms | Labeled and bundled together with steel strip | |
Quality | ISO, APl,SGS,BV,CSS, Mill Test Certificate | |
Application | liquid delivery (pump well,gas, water),construction pipe, structural |
